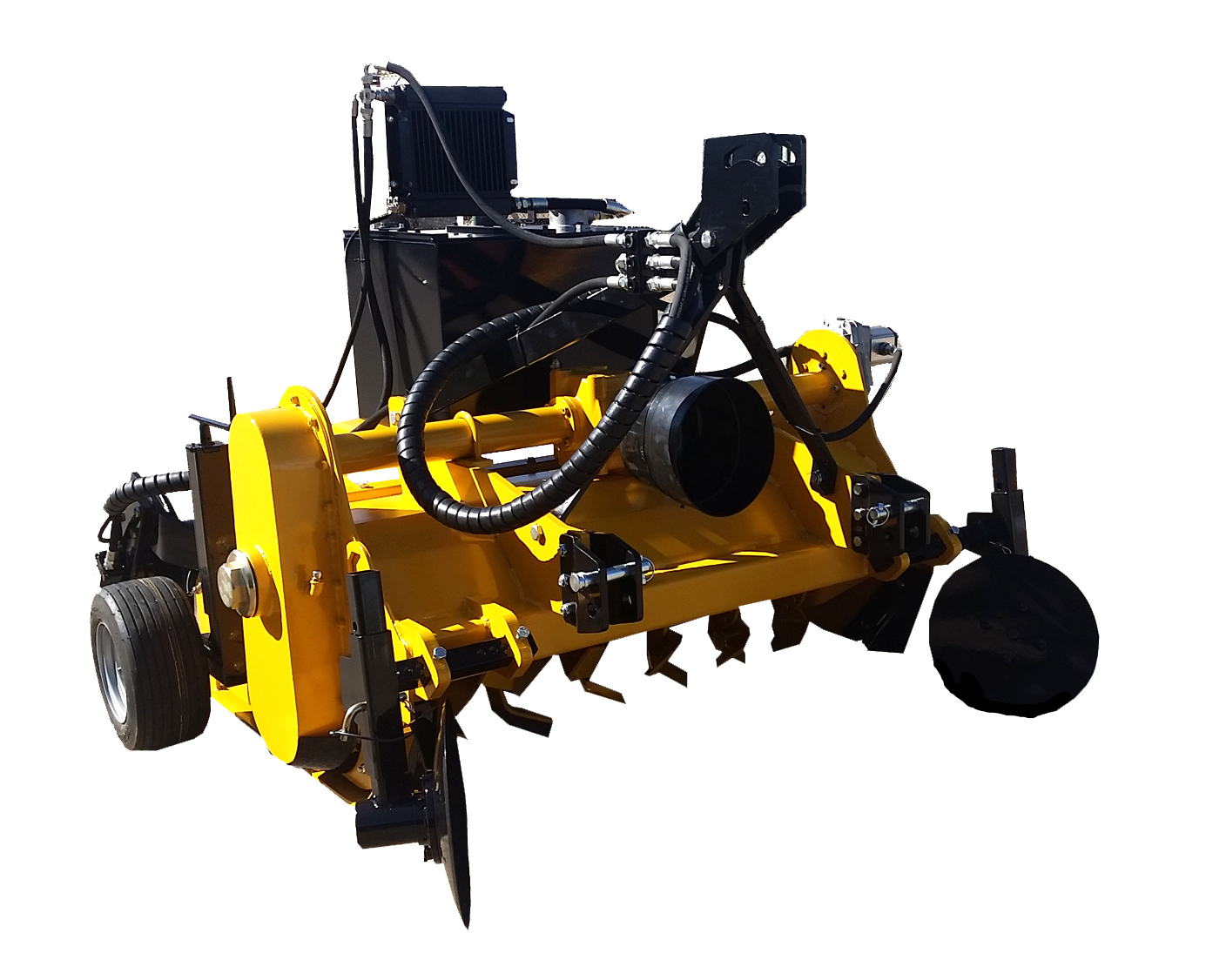

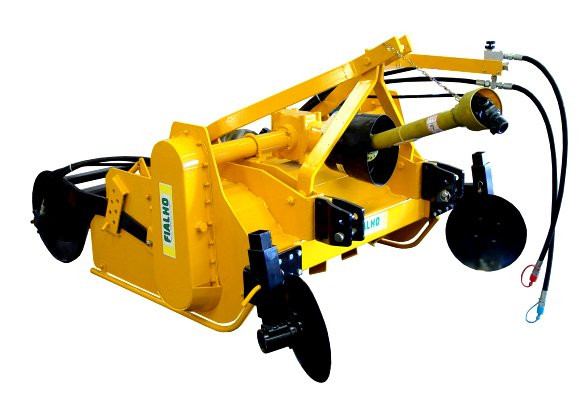

ROTATING CULTIVATOR/BED BUILDER/STONE BURY FIALHO FI-AFR/RH/1300



The FI-AFR/RH Series Stone Burrowing Milling Set is an assembled equipment designed for horticultural bed making. It has a knife milling system with a special angle, which is driven by an upper reducer. The machine is also equipped with a clutch cardan and two furrow openers, which help clean the furrows and contribute to better stabilization of the owner during operation.

A hydraulic motor is used to move the compactor forming roller. This roller has the function of compacting and shaping the soil bed, being especially useful in difficult and stony jobs. It is able to create a fine and even surface, suitable for delicate planting of seeds.

This machine is ideal for bed preparation in horticultural growing areas where well-prepared, level ground is required to ensure favorable conditions for plant growth. With its features and characteristics, the FI-AFR/RH series Rock Burrower Assembler offers efficiency and quality in the creation of horticultural beds, even in challenging terrains.







The FI-AFR/RH/1300 Fialho FI-AFR/RH/1300 Stone Burrower Assembler is a versatile and multifunctional machine designed to meet the specific needs of agriculture. Some of the options and features provided by this machine are as follows:



1. Special angle knife cutter system: The machine has a special angle knife cutter system. The rotation movement of the blades is provided by a cardan clutch and a double output gearbox, connected to the tractor PTO. This allows the machine to grind and prepare the soil efficiently.



2. Two-Way Rotation: The machine is capable of two-way rotation, allowing users to choose the rotation direction that best suits their needs. To change the direction of rotation, it is necessary to invert the box, the knife shaft and the chain tensioner.



3. Adjustable front discs: The machine has two front discs that can be adjusted to enhance the entry of soil in the center of the tiller, enabling the construction of the bed. These discs also help stabilize the machine in conjunction with the tractor, in addition to promoting the depth of the soil bed and reducing wear on the structure in contact with the terrain.



4. Powered Rear Roller: The rear roller is hydraulically powered, which makes it easier to move the machine and compact the soil bed. Roll width is easily adjustable on conical drums, and rear apron rudders can be used if required.



5. Rock and clod burying: An outstanding feature of this machine is its ability to bury rocks and clods, leaving the soil bed smooth and soft, which is beneficial for growing delicate horticultural plants.



6. Mechanical simplicity: The machine is designed with mechanical simplicity, which makes its maintenance and repair extremely easy. This also contributes to its cost-effective preference as it requires less time and resources to maintain and repair the machine.



In addition, there are some optional accessories available for the FI-AFR/RH/1300 Stone Burrower Fialho FI-AFR/RH/1300. These accessories include:



- Fertilization system located at three exits complete with reducer, deposit and cardan.
- Microgranulator system with one or two outlets, which can be combined with the fertilizer system for precise application of granulated fertilizers.
- Complete localized spraying system, with pump, tank and cardan, for targeted spraying of phytosanitary products.



These optional accessories allow you to adapt the machine to meet specific fertilizing and spraying needs in agriculture.
