CHECCHI & MAGLI BABY TRIUM

Suitable for conical and pyramid shaped clod plants, from salads and chicory with small dimensions leaves and peat clods to tobacco with very developed root and leaf body; driven by rubber driving-wheels.

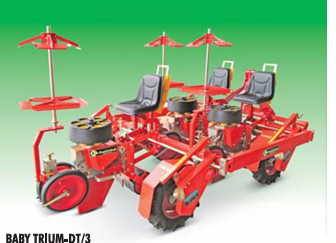

The small dimensions of the machine (only 130 cm length) facilitate exploiting double-frame (DT) versions, with distance between rows min. cm 25 and very high hourly production. Standard equipment is very rich, including among the others a doubleeffect parallelogram, big flex rubber packing wheels Ø 410 mm, a rotary 6-cup distributor, reduction inserts and rotary tray-holders. Standard version with flex front roller, SKID version with packing slide.

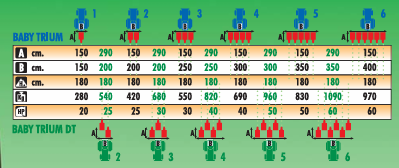

Distance between rows minimum 50 cm (minimum 40 cm for the 2 rows BABY TRIUM with a special optional kit).

Indicative production, up to 3000/4000 plants per hour each row.

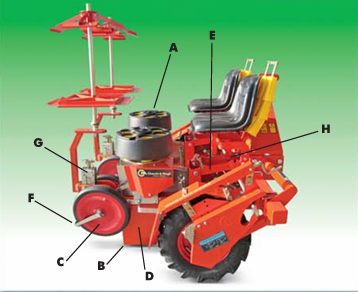

A) Distribution system: horizontal rotary system with 6 high‑capacity cups, full opening, and included reducing inserts (optional extensions). On request, version with aluminium cup distributor with opening bottom (TEXDRIVE BEST‑type semi‑cup).

B) Plant Control: device for precise and consistent plant placement.

C) Compaction wheels: bi‑convergent, with triple adjustment, for ideal hilling.

D) Furrow‑opening ploughshare: with quick release and anti‑release system.

E) Parallelogram: long travel to maintain constant horizontality; reversible spring to increase or reduce the weight on the compaction wheels; adjustable front flex wheel.

F) Wheel scraper: high‑efficiency, with dual adjustment (height and inclination).

G) Transplanting depth: practical regulation with a wide adjustment range.

H) Automatic release: in case of accidental blockage, with automatic re‑engagement and self‑synchronisation.

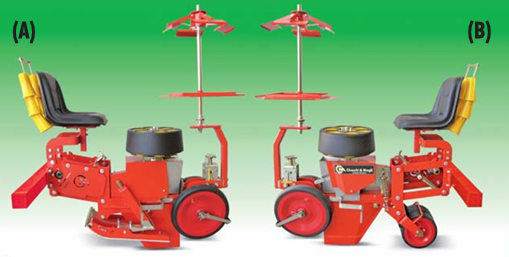

SKID version (A): with height‑adjustable compacting skid, in combination with the compaction wheels; recommended for use on soft and dry soils, allowing the transplanting units to “float” on the surface.

Standard version (B): with floating front flex wheel and adjustable pressure; recommended for use on medium‑texture soils, to compact and level the surface.
